Tankwagen couplings

Our Tankwagen couplings

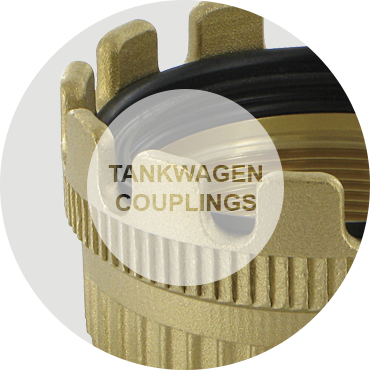

This Tankwagen coupling has a seal providing sealing, a die-cast (not moulded) lever ring for better mechanical resistance, and closing notches for resisting vibrations.

Coupling is achieved by combining a MK (Mutter Kupplung: female coupling) lever coupling with a VK (Vatter Kupplung: male coupling) coupling with the same diameter. The two couplings apply pressure one to another through a lever. This coupling system is fast and secure due to a tightening lever, a tightening which does not require any spanner or other tool, being done by hand.

1-tankwagen

Available materials

matiere-aluminium
matiere-inox
Stainless steel
Polypropylene

Our range offers

MK coupling

BSPP female threaded (parallel thread, sealing is provided by the gasket)

VK coupling

BSPP female threaded (parallel thread, sealing is provided by the gasket)

MB and V plug

tankwagen couplings

Conformity with manufacturing standards

  • NFE 29537 : Working pressure 10 Bars.

The threads of the fittings comply with EN ISO 228.1 BSP. These fittings eliminate leaks of liquid or compressed air when passing through the pipe.
