Storz couplings

Our Storz couplings

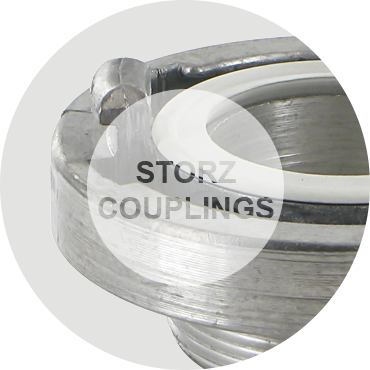

Storz coupling is a quick-release, symmetrical coupling. There is thus no difference between the male and the female coupling. This coupling has a gasket for sealing, and two claws which position into each groove of the other coupling, thus locking the two couplings. A half-turn rotation clamps the couplings together. To separate (take apart) the two Storz couplings, you just need to make a half-turn in the other direction. These operations have to be carried out using a Storz spanner especially designed for this purpose.

The dimensions for Storz couplings are measurable in-between claws, these couplings being intended for a working pressure of 16 bars/225PSI.

Storz couplings are available in several diameters, DN25 to DN200.

1-stortz

Our range offers

Grooved socket coupling

used to be crimped on hoses

Male and female threaded coupling

with BSP thread (used in Europe)

storz couplings
Reducer

for switching from one size to another

Blank cap

Conformity with manufacturing standards

For discharge couplings:

  • A: Distance between claws: 133mm; for hose Inner diameter 110mm (Din14300)
  • B: Distance between claws: 89 mm; for hose Inner diameter 75mm (Din14303)
  • C52: Distance between claws: 66 mm; for hose Inner diameter 52mm (Din14302)
  • C42: Distance between claws: 66 mm; for hose Inner diameter 42mm (Din14332)
  • S32: Distance between claws: 66mm; for hose Inner diameter 32mm (Din14330-1)

For suction couplings:

  • A: Distance between claws: 133mm; for hose Inner diameter 110mm (Din14323)
  • B: Distance between claws: 89 mm; for hose Inner diameter 75mm (Din14322)
  • C : Distance between claws: 66 mm; for hose Inner diameter 52mm (Din14321)
  • D: Distance between claws: 31 mm; for hose Inner diameter 25mm (Din14301)

Fields of application

These half-couplings are used for suction and discharge in different application fields such as:

  • Industry
    Recommended materials: aluminium, stainless steel, bronze, polypropylene.
  • Fire-fighting
    Recommended materials: bronze, aluminium
  • Oil industry
    Recommended materials: bronze, stainless steel, aluminium.
  • Chemical industry
    Recommended materials: Stainless steel, polypropylene.
  • Pharmaceutical industry
    Recommended materials: Stainless steel, polypropylene.
  • Food industry
    Recommended material: Stainless steel.
  • Petrochemistry
    Recommended materials: Stainless steel, aluminium, polypropylene.
  • Construction
    Recommended materials: aluminium, bronze.
  • Maintenance
    Recommended materials: aluminium, stainless steel, bronze, polypropylene.
  • Agriculture
    Recommended material: galvanised steel
  • Irrigation
    Recommended material: galvanised steel
  • Steel mills
    Recommended material: galvanised steel
  • Bulk transport in cisterns of liquids and powders
    Recommended materials: aluminium, stainless steel, bronze, polypropylene.
