Flanged couplings

Our flanged couplings

Pathel Industrie offers a wide range of flanged couplings. A smooth socket coupling matches another coupling of this type. Assembly is done with bolts, and sealing is provided by a gasket.

Our range offers

Smooth socket swivel flange coupling

Bayonet ring ribbed socket swivel flange coupling

Bayonet ring smooth socket flange coupling

Bayonet ring ribbed socket static flange coupling

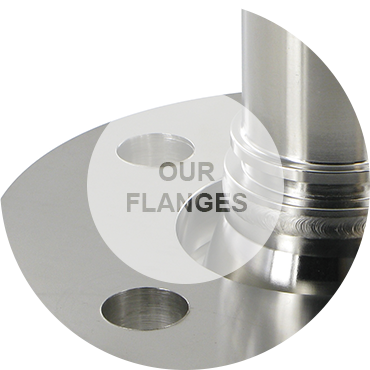

flanges
Ribbed socket static flange coupling without bayonet ring

PN10/16 flat flange

PN 10/16 Bayonet ring flange

Conformity with manufacturing standards

  • NFE 29 203
  • NFE 29 209
  • ISO 2084
  • DIN2501
  • AINSI 1501b

Fields of application

  • Industry
    Recommended materials: aluminium, stainless steel, bronze, polypropylene.
  • Fire-fighting
    Recommended materials: bronze, aluminium
  • Oil industry
    Recommended materials: bronze, stainless steel, aluminium.
  • Chemical industry
    Recommended materials: Stainless steel, polypropylene.
  • Pharmaceutical industry
    Recommended materials: Stainless steel, polypropylene.
  • Food industry
    Recommended material: Stainless steel.
  • Petrochemistry
    Recommended materials: Stainless steel, aluminium, polypropylene.
  • Construction
    Recommended materials: aluminium, bronze.
  • Maintenance
    Recommended materials: aluminium, stainless steel, bronze, polypropylene.
  • Agriculture
    Recommended material: Galvanised steel
  • Irrigation
    Recommended material: Galvanised steel
  • Steel mills
    Recommended material: Galvanised steel
  • Bulk transport in cisterns for liquids and powders
    Recommended materials: Aluminium, Stainless steel; Bronze, Polypropylene.
